Big Iron Flow Control Products | SKU:
MAN31610K5V21P1A-SK-001

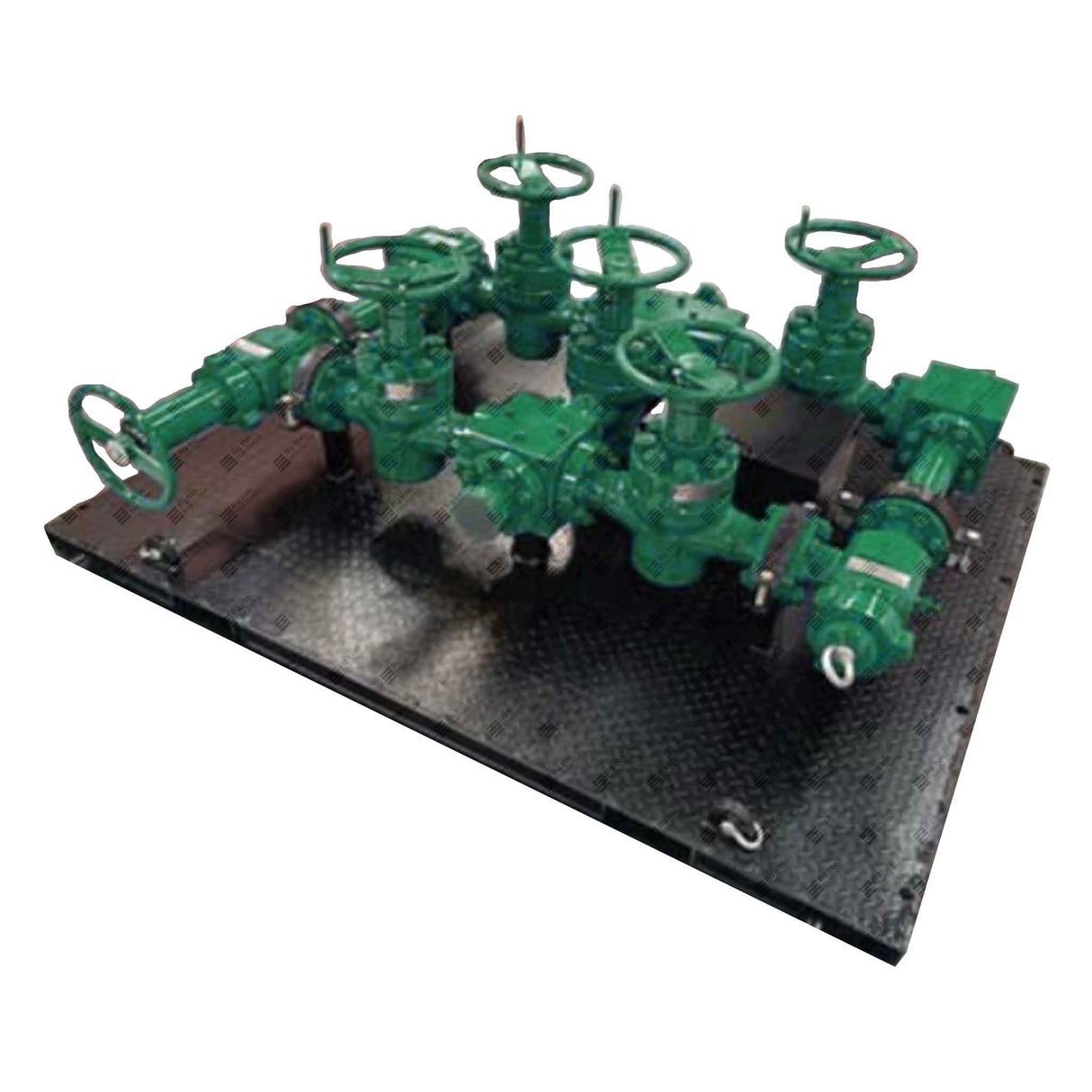

Choke Manifold, 3-1/16" 10M, 3" 1502 FxM, 5x Manual Gate Valve, 1x Adj, 1x Pos, EE-1.5, P+U, PSL 3, PR 1,
Rs.15,810,700.00 PKR
Unit price
/
Unavailable
Shipping calculated at checkout.
Lead Time: 2-3 Weeks
Choke Manifold, 3-1/16" 10M, 3" 1502 FxM, 5x Manual Gate Valve, 1x Adj, 1x Pos, EE-1.5, P+U, PSL 3, PR 1, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Manifold, Choke, 3-1/16" 10M, 3" 1502 FxM, 5 Valve, 1 Adj-1 Pos, EE-1.5, P+U, PSL 3, PR 1
| MODEL: | MAN31610K5V21P1A-SK-001 |
| WORKING PRESSURE: | 10000 PSI (70 mPa) |
| NOMINAL SIZE: | 3-1/16 IN (78 MM) |
| TEMPERATURE CLASS: | (P-U) -20F to 250F (-29C to 121C) |
| MATERIAL CLASS: | EE-1.5 SOUR GAS |
| WORKING MEDIUM: | OIL, MUD, GAS(H2S), WATER, FRAC FLUID, DRILLING FLUID ETC. |
| PRODUCT SPECIFICATION: | PSL3 |
| PERFORMANCE REQUIREMENTS: | PR1 |
| FLOW LINE CONNECTIONS: | 3" Fig. 1502 Hammer Union Thread x Wing (Female x Male) |
| CHOKES: | 1 Adjustable (2" MAX) and 1 Positive |
| VALVES: | 5 Gate Valves w/ Hand Wheel Operators |
| SERVICE APPLICATIONS | Well Testing, Fracturing, Cementing, Drilling, Oil Production, Pipeline |
| SPECIFICATIONS: | API 6A 21ST Ed., NACE MR-01-75 |
| BODY MATERIAL: | AISI 4130 Alloy Steel |
| SKID: | Skid mount with forklift holes and lifting eyes |
| WEIGHT: | 3.2 TON |
